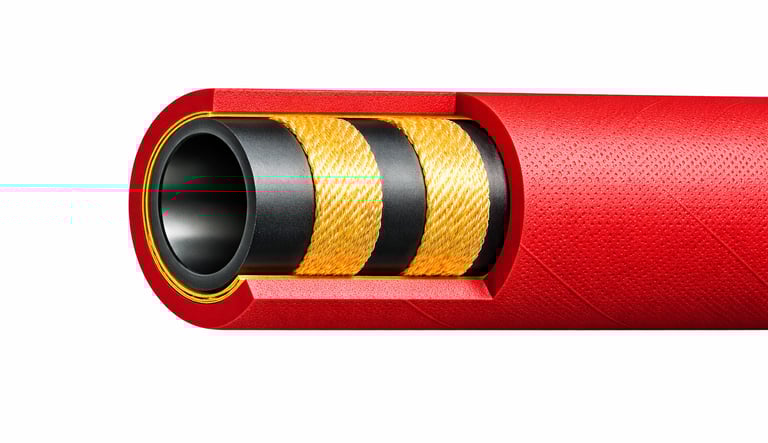

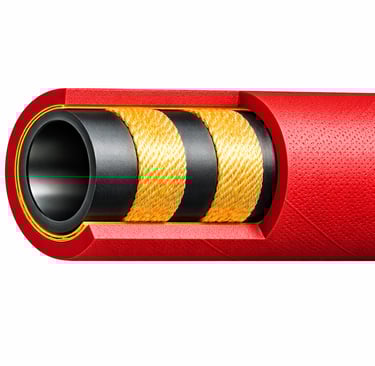

Steam hose

Application

For conveying saturated steam and superheated water continually at a temperature below 150 ℃ or intermittently at a temperature below 160 ℃.
'
 aimg1 aimg1aimg2aimg4 aimg5 aimg6aimg7
W/BHose IDHose IDHose OD Working PressureBurst PressureBending RadiusWeight
DNinchmmbarbarmmkg/m
103/821.5104013020/50
131/224.5104018020/50
165/827.5104020520/50
193/430.5104024020/50
227/833.5104028020/50
1w25137104030020/50
321 1/444104042020/40
381 1/250104050020/40
451 3/457.5104050020/40
51263.5104063020/40
642 1/277.5104070020/40
103/823206013020/50
131/226206018020/50
165/829206020520/50
193/432206024020/50
227/835206028020/50
2w25138.5206030020/50
321 1/445.5206042020/40
381 1/252206050020/40
451 3/459206050020/40
51265206063020/40
642 1/279206070020/40
Applicable Standard:

Standard: Q/HYL03 STANDARD

Construction:

Type: Made of excellent heat-resistant rubber, the reinforcement is braided with Copper facing wire.

Finishing:

Tube:
Reinforcement:
Cover:

Temperature Range:

Advantages/Special features
