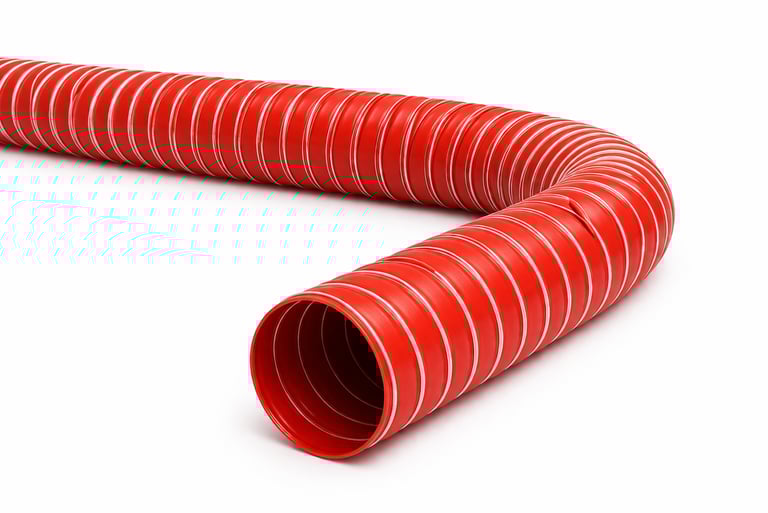

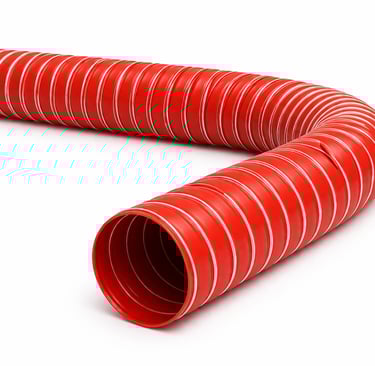

Red duct hose

Application

Suction hose, especially suitable:
  • For transmission hot air, chemical fumes and industrial fumes
  • For printing machines, blowers
  • For exhausting gas, engine construction, engine warming, aircraft construction and military construction

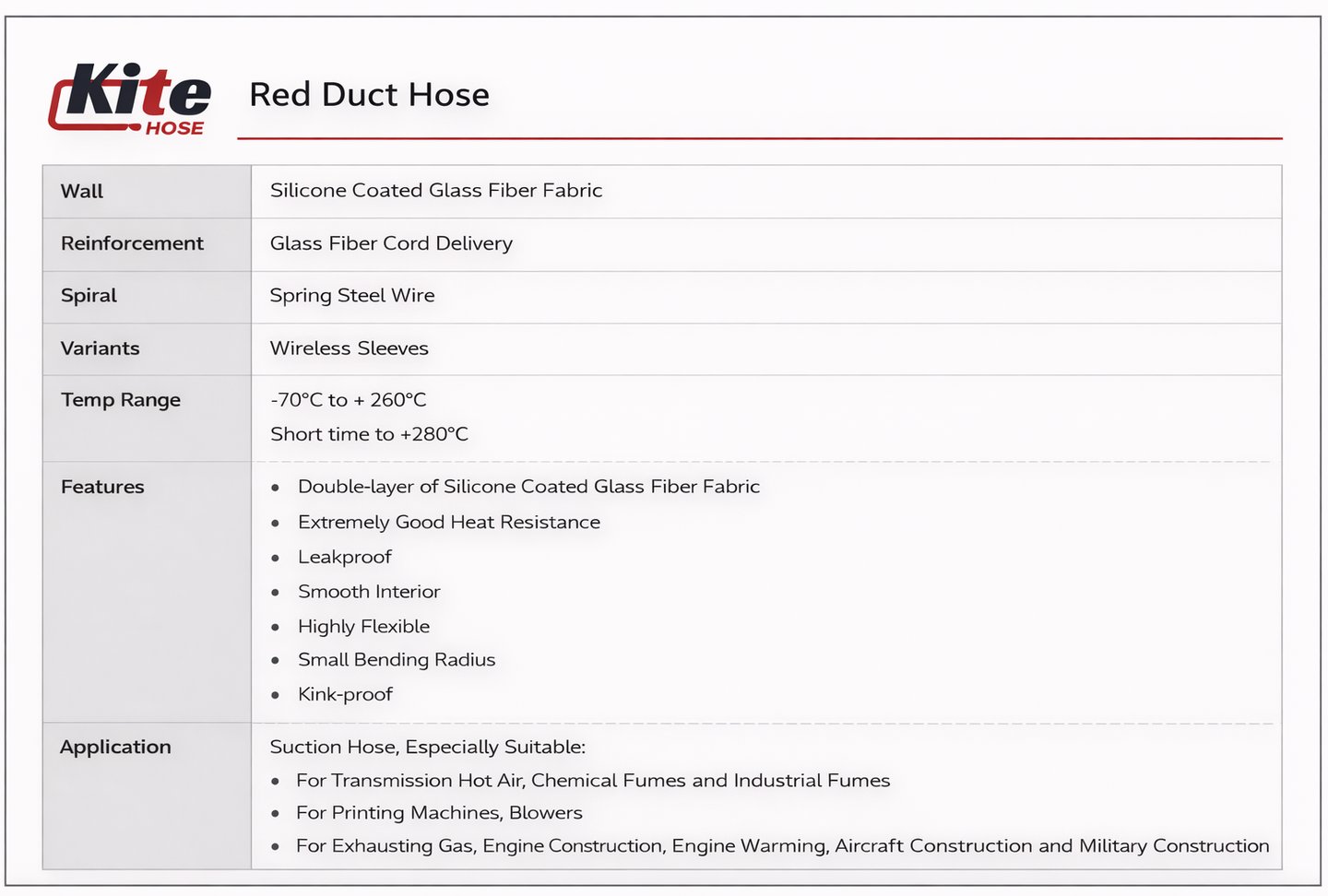

Features:
  • Double-layer of silicone coated glass fiber fabric
  • Extremely good heat resistance
  • Leak Smooth interior
  • Highly flexible
  • Small bending radius
  • Kink-proof
  • Material:
  • Wall: Silicone coated glass fiber fabric
  • Spiral: Spring steel wire
  • Delivery Variants: Wireless sleeves
  • '
    aimg1aimg2aimg3aimg4
    aimg5aimg6aimg8

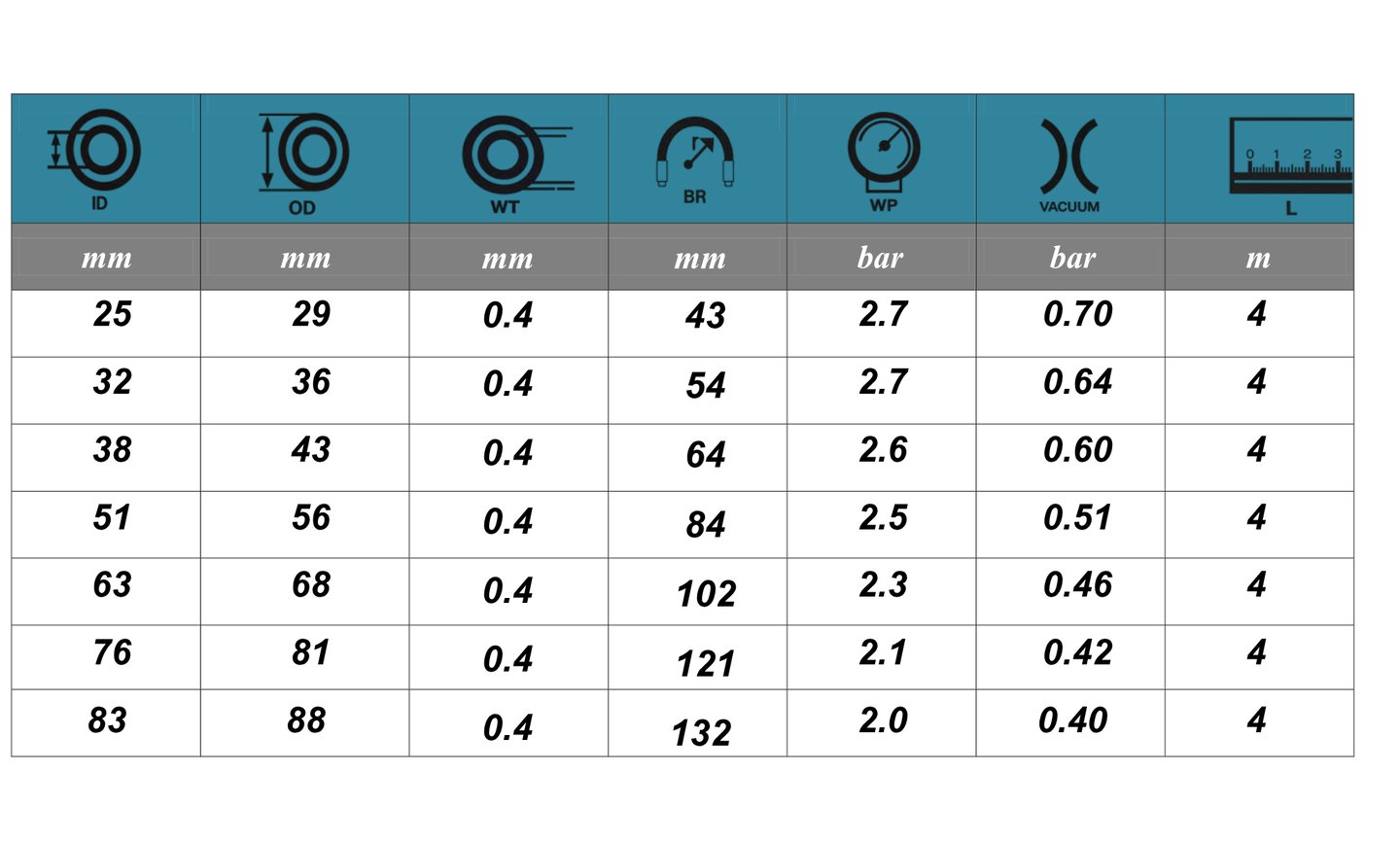

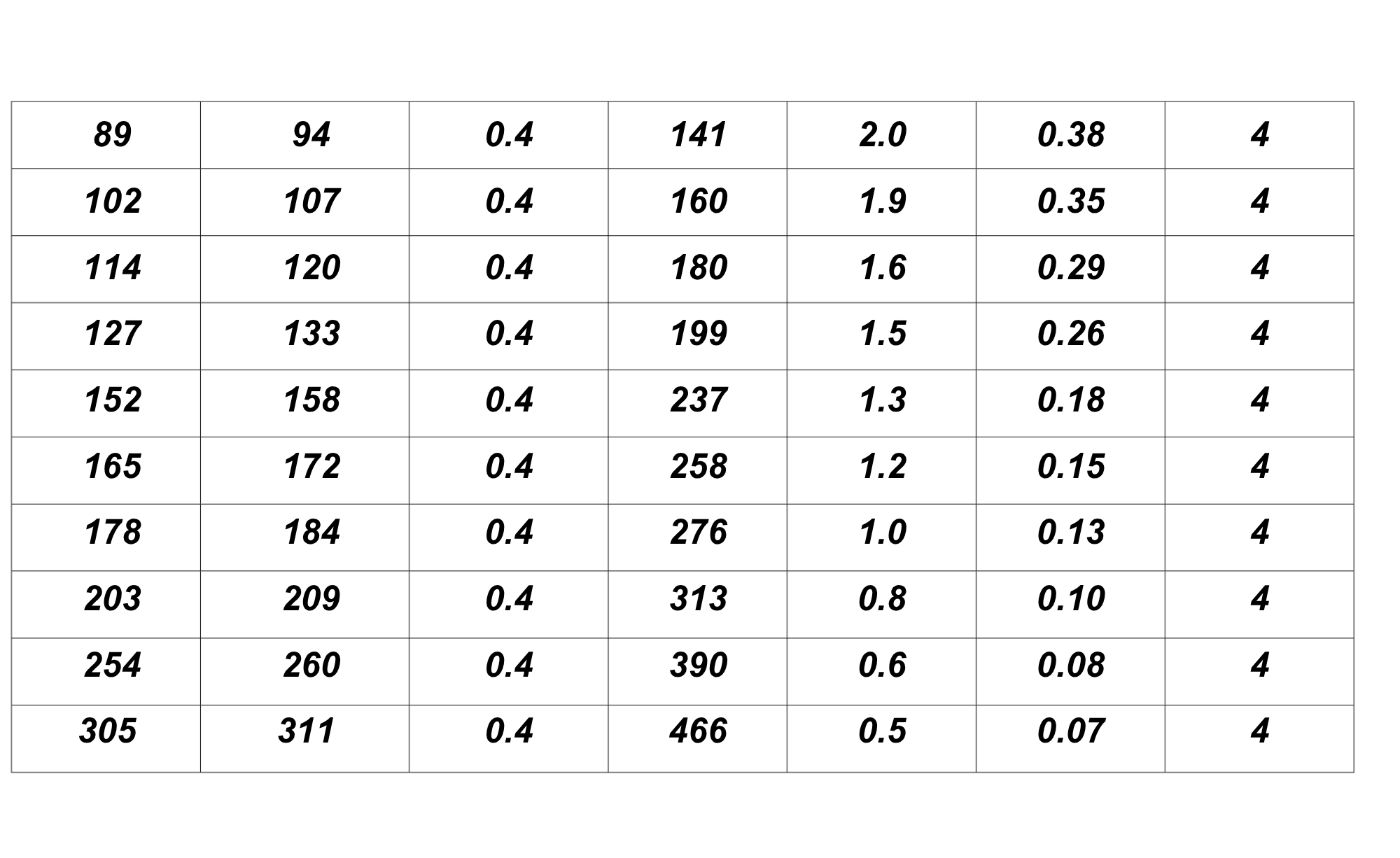

    IDODWallWorking PressureBurst PressureBending RadiusMax. Length
    mmmmmmbarbarmmm
    25290.42.70.7434
    32360.42.70.64544
    38430.42.60.6644
    51560.42.50.51844
    63680.42.30.461024
    76810.42.10.421214
    83880.420.41324
    89940.420.381414
    1021070.41.90.351604
    1141200.41.60.291804
    1271330.41.50.261994
    1521580.41.30.182374
    1651720.41.20.152584
    1781840.410.132764
    2032090.40.80.13134
    2542600.40.60.083904
    3053110.40.50.074664
    Applicable Standard:

    Standard:

    Construction:

    Type:

    Finishing:

    Tube:
    Reinforcement: Glass fiber cord
    Cover:

    Temperature Range:

    -70℃ to +260℃

      Short time to +280℃
    Advantages/Special features
