R13

Application

350 Bar super high pressure Hydraulic Lines and hydrostatic transmission lines Also, suitable for impulse surge lines with more life cycles. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving equipments and machineries/systems.
'
 aimg1aimg2aimg4aimg5aimg6
Dash sizeIDODWorking
Pressure
Burst
Pressure
Bending
Radius
mmmmbarbarmm
-121931.73501400240

-1625.438.33501400300
-2031.849.43501400420
-2438.156.73501400500
-3250.870.53501400630
Applicable Standard:

Standard: Standard: SAE J 517-100 R13/EN856-R13.

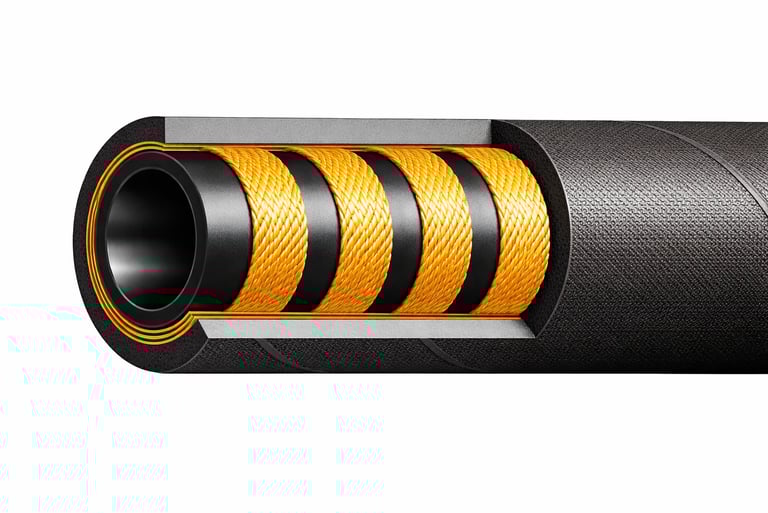

Construction:

Type:

Finishing:

Tube:
Reinforcement: Four or Six high tensile steel wire spirals.
Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion

Temperature Range:

Continuous: -40°C to +120°C

Advantages/Special features
