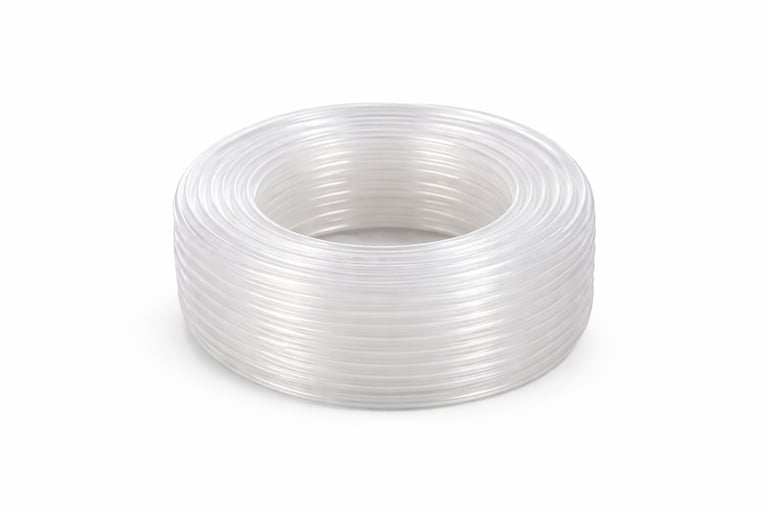

Nylon Tube

Application

    PA hose is suitable to be used on the following application: For hydraulic hoses, robotics, and vacuum, fuel, vapor, air and brake lines.
    PA hose's heat resistance and UV stabilization make PA hose resistant to stress-cracking, so it works well in sunny areas.
'
aimg1aimg2aimg4aimg5aimg6aimg7aimg8

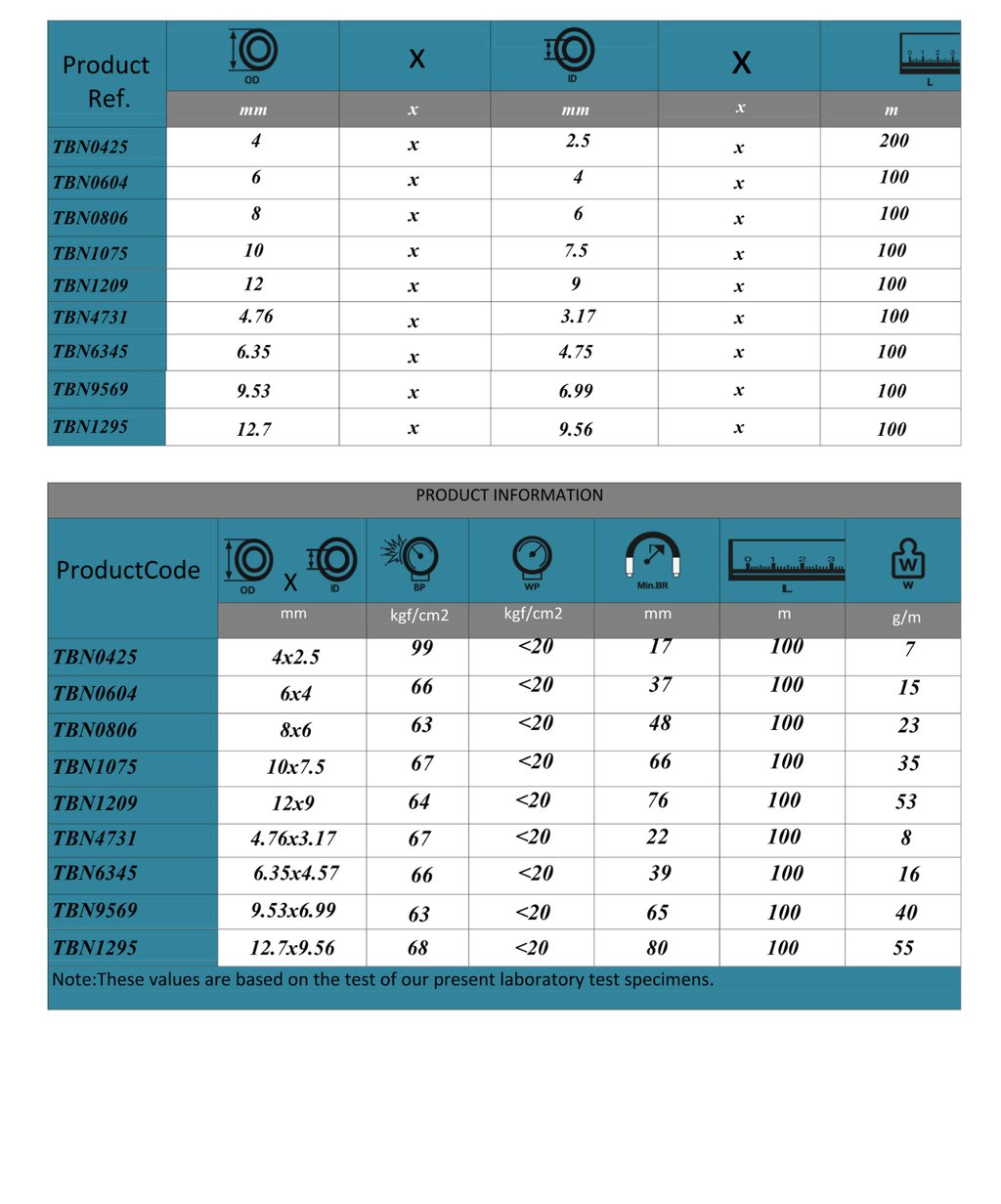

IDODWorking PressureBurst PressureBending RadiusWeightMax. Length
mmmmbarbarmmg/mm
2.54<2099177100
46<20663715100
68<20634823100
7.510<20676635100
912<20647653100
3.174.76<2067228100
4.576.35<20663916100
6.999.53<20636540100
9.5612.7<20688055100
Applicable Standard:

Standard:

Construction:

Type:

Finishing:

Tube:
Reinforcement:
Cover:

Temperature Range:

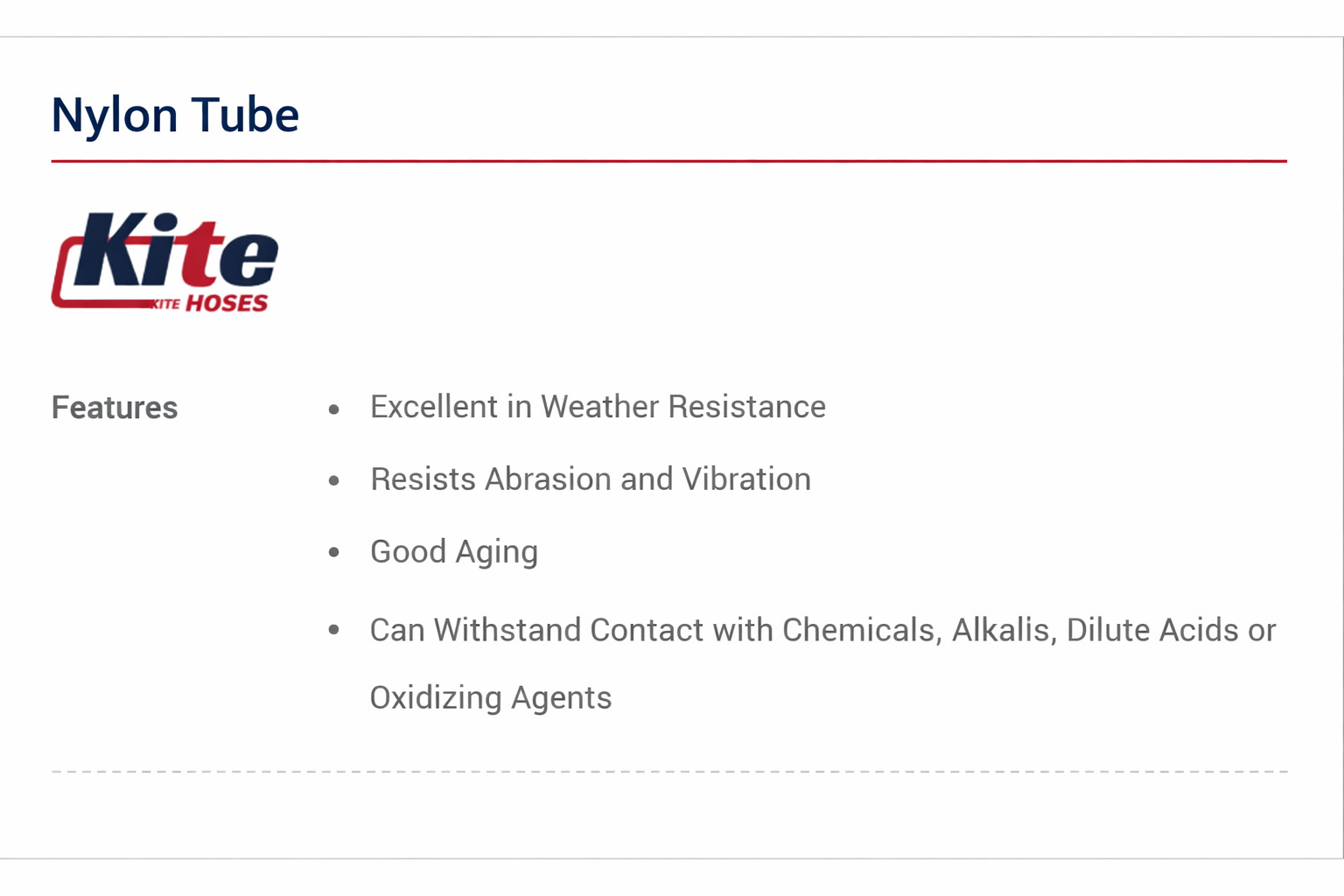

Advantages/Special features
