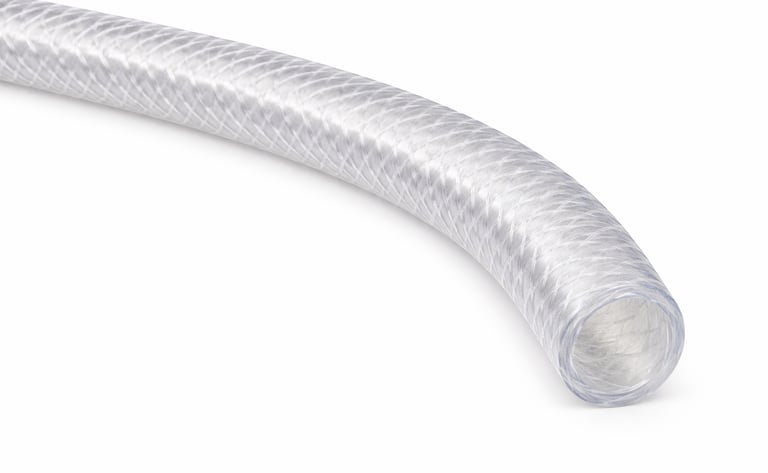

HN Reinforced hose

Application

HN can be used to convey many liquids and gases under pressure. Applications include factory air lines, pneumatic equipment & general workshop use.
'
aimg1aimg2aimg4aimg5aimg6aimg7aimg8

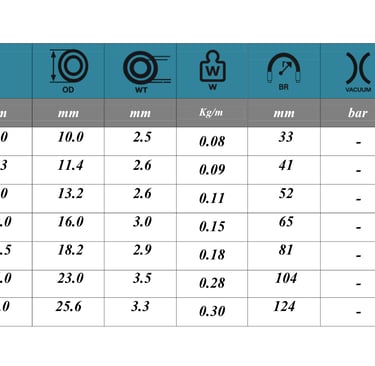

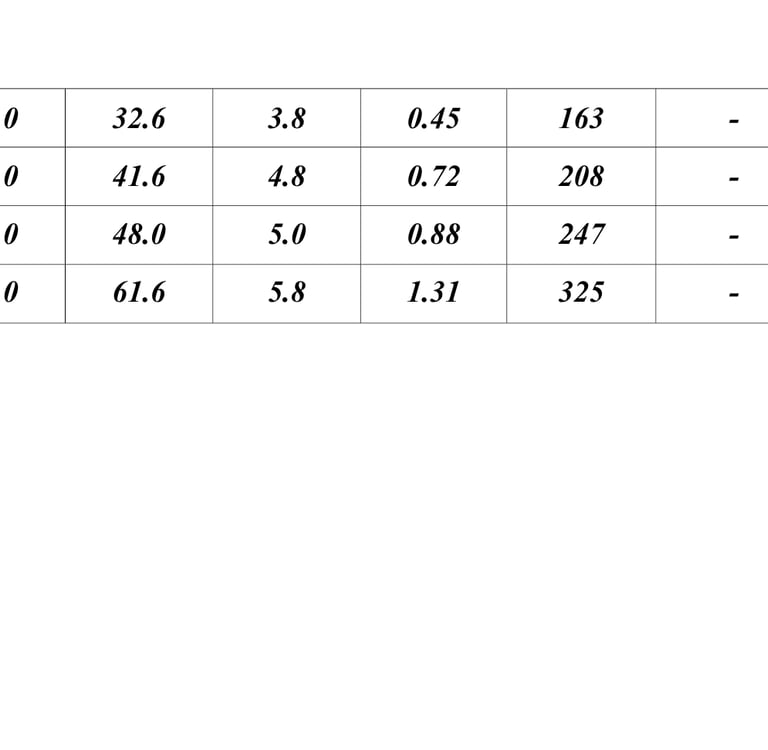

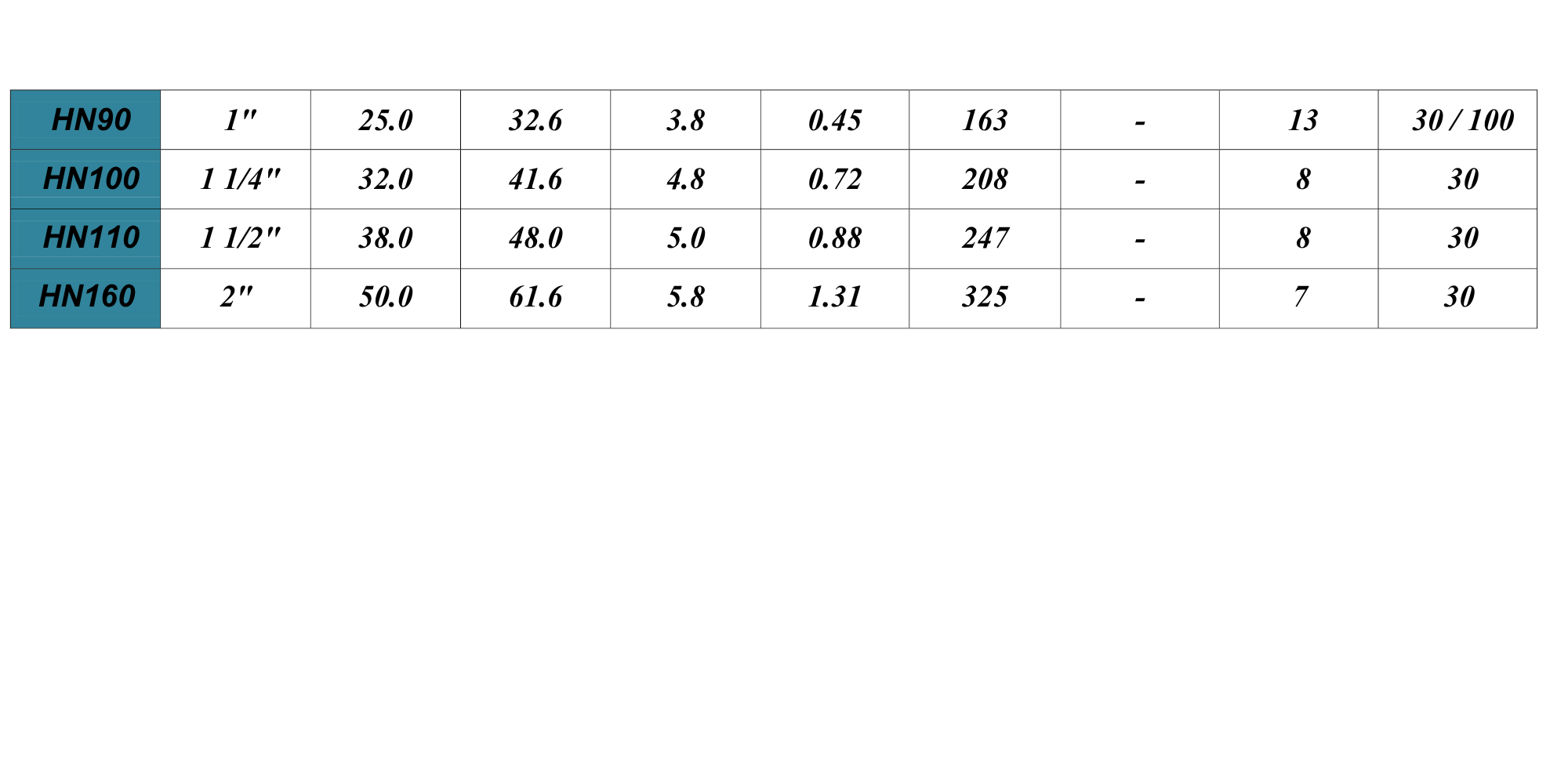

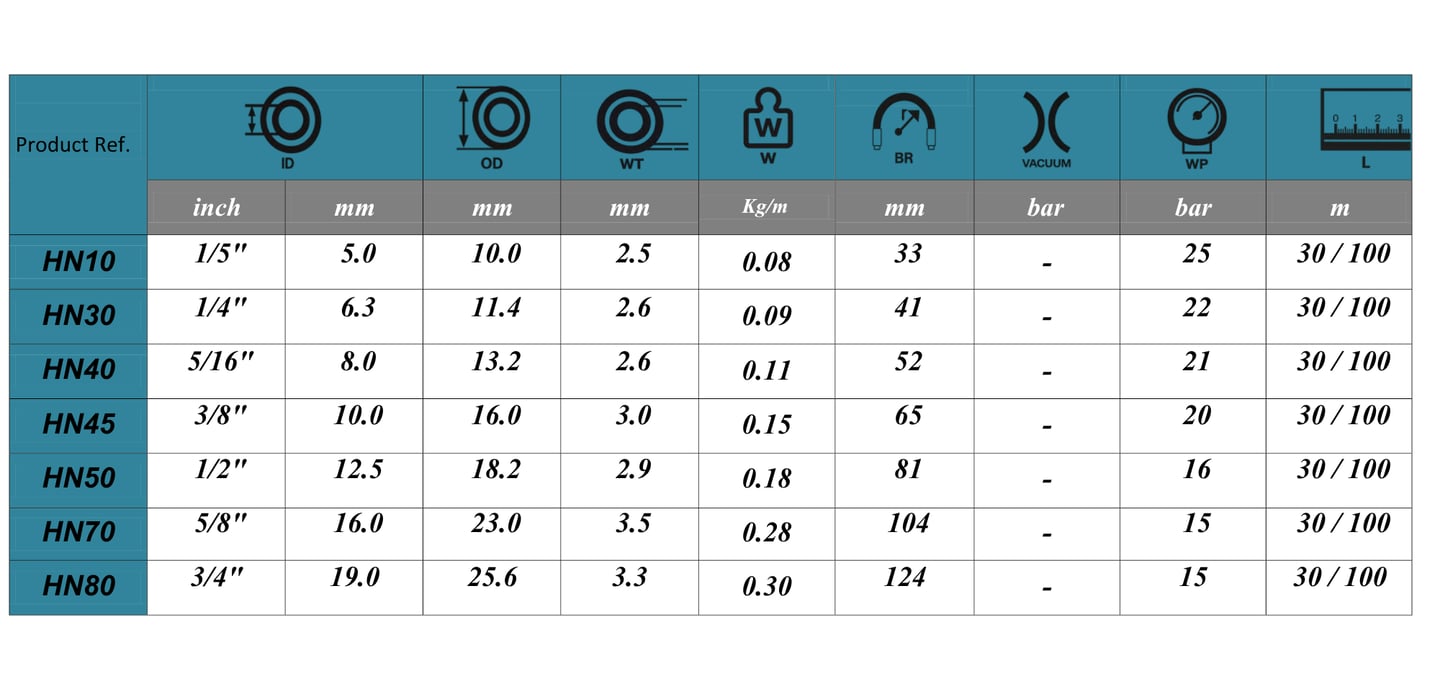

IDODWorking
Pressure
Water
Working
Pressure
Air
Bending
Radius
WeightMax.
Length
mmmmbarbarmmkg/coilm
5102518.732.52.2530
6.311.42216.5412.730
813.22115.7523.330
10162015654.6230
12.518.2161281.35.3430
16231511.21048.430
1925.61511.2123.59.0930
2532.6139.7162.513.4130
3241.68620821.7230
38488624726.3730
5061.675.232539.4230
Applicable Standard:

Standard:  BS EN ISO 6224 and BS EN ISO 5774.

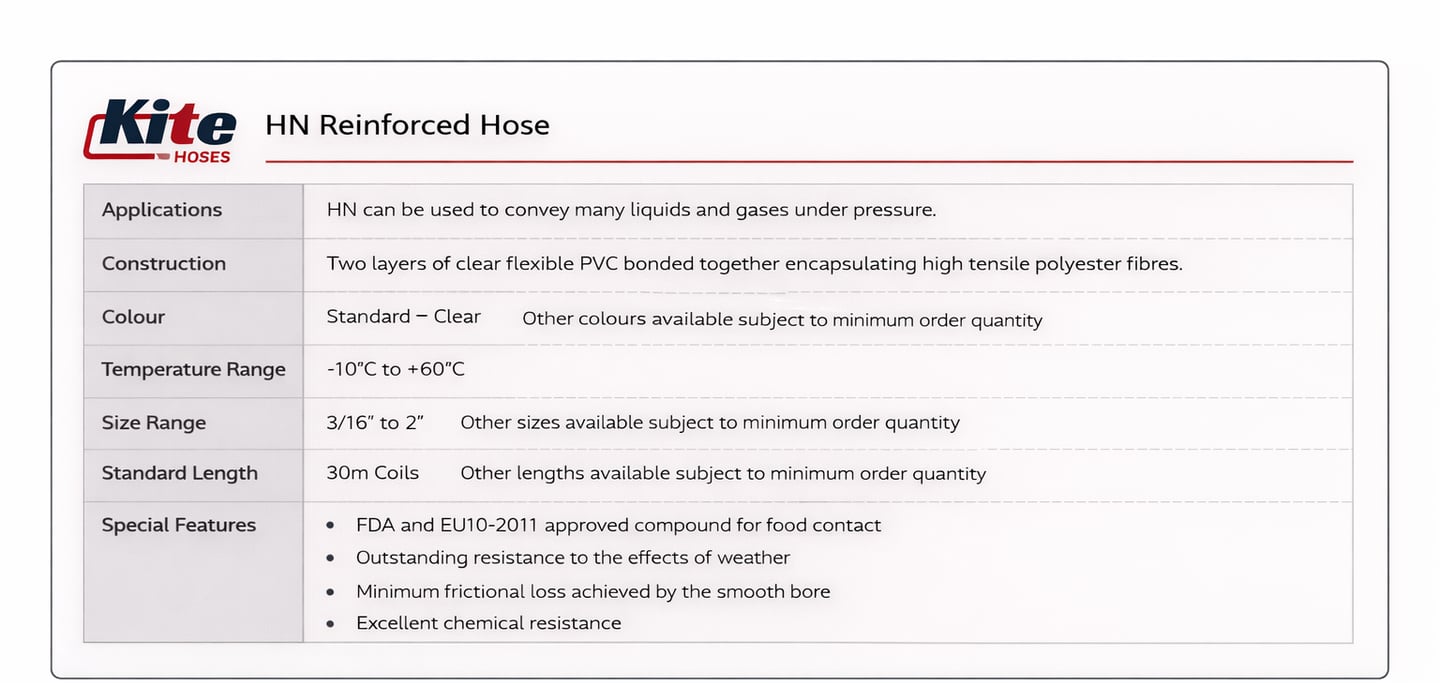

Construction:

Type:

Finishing: Two layers of clear flexible PVC bonded together encapsulating high tensile polyester fibres.

Tube:
Reinforcement:
Cover:

Temperature Range:

-10°C to +60°C

Advantages/Special features

Optimum flow is maintained by the smooth bore Excellent transparency, enabling blockages to be located Highly flexible Good resistance to a wide range of chemicals Non-toxic
