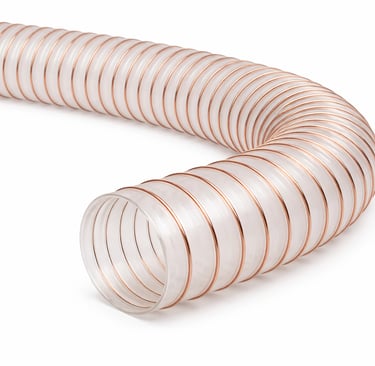

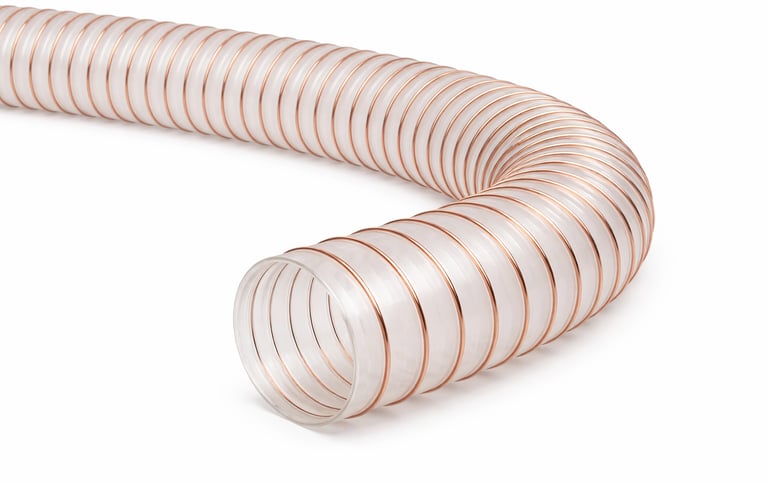

Copper wire hose

Application

Ideally for suction and transport hose for abrasive solids such as dust, powders, wood chips, granulates, oil and fuel etc. Also very suitable for ventilation system and industrial vacuum cleaner.
'
aimg1 aimg1aimg2aimg4aimg4aimg7aimg8

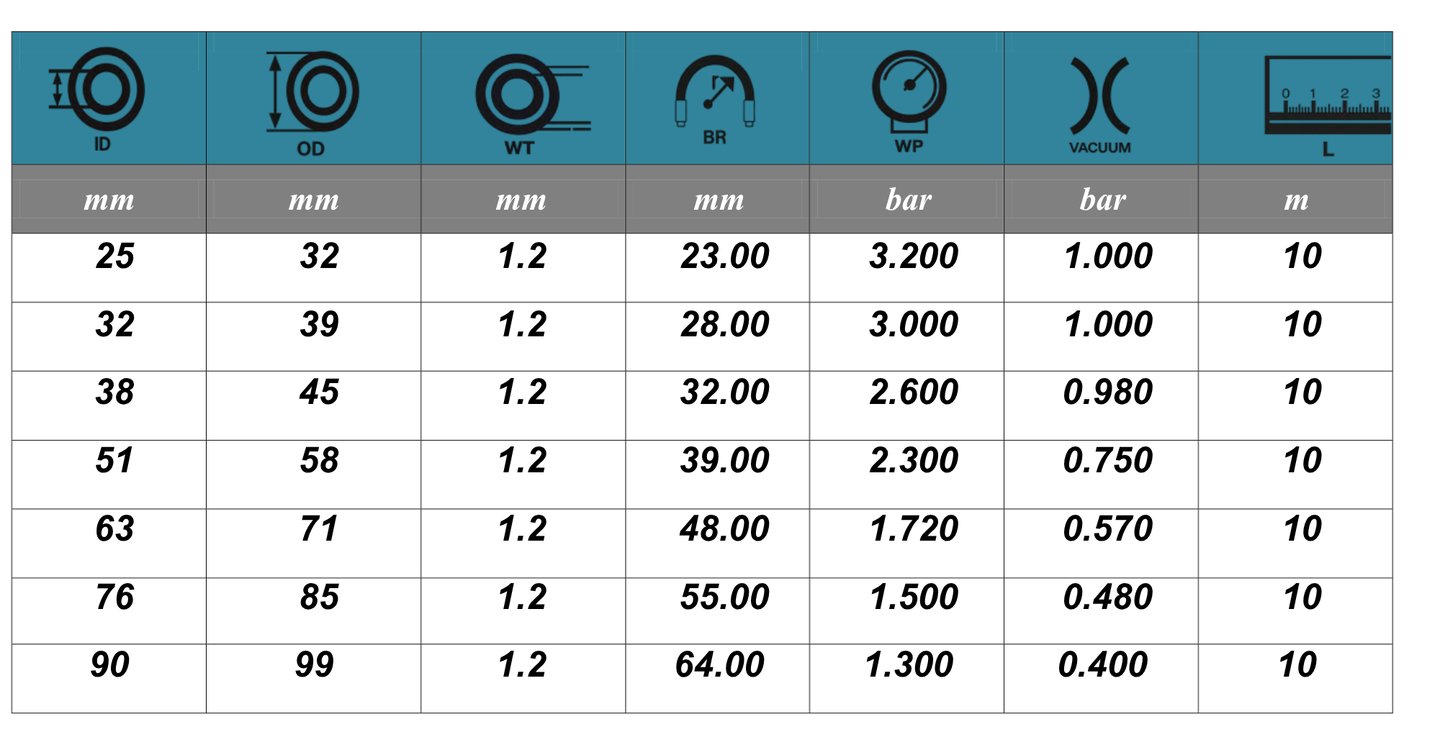

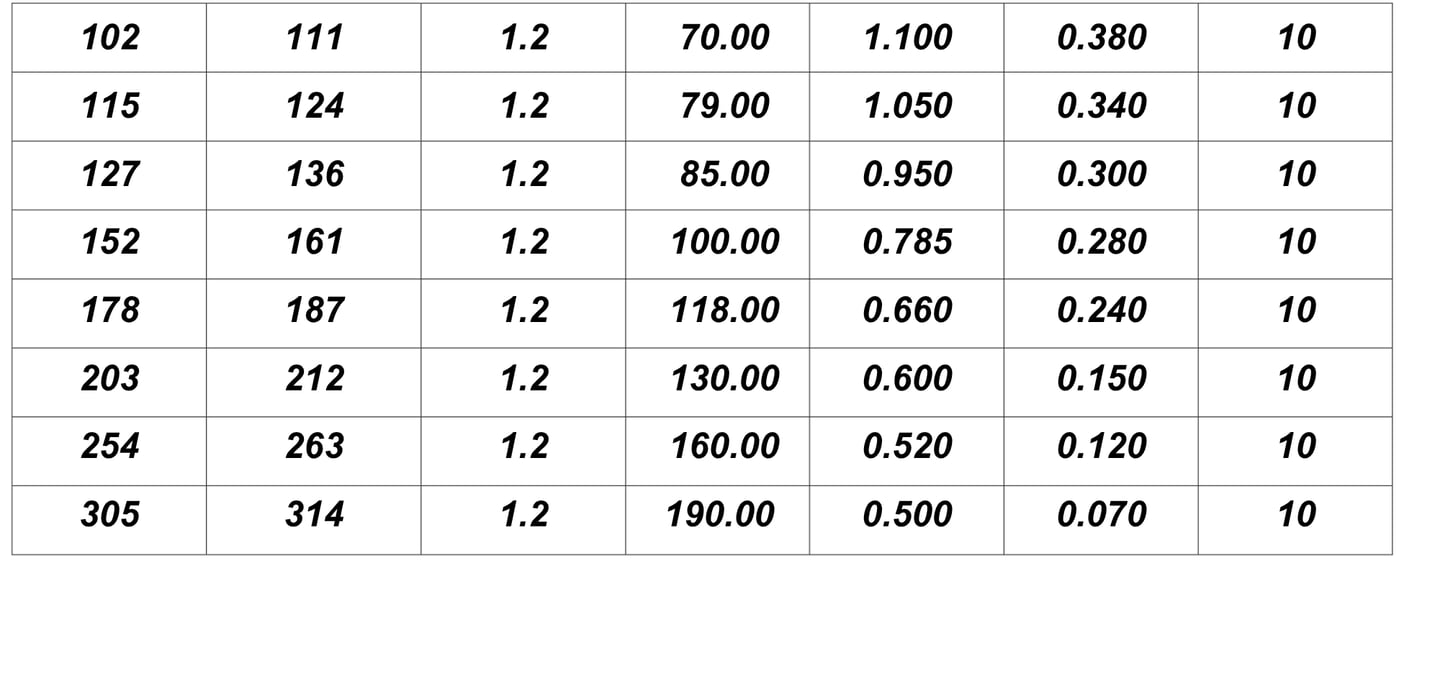

IDODWall
Thickness
Working
Pressure
Vacuum
Pressure
Bending
Radius
Max.
Length
mm mmbarbarmmmmm
25320.40.750.453810
32390.40.700.404710
38450.40.700.355410
40470.40.650.35 5610
51 580.40.500.306910
60680.40.500.25 81 10
63710.40.500.25 85 10
70790.40.450.229410
76850.40.400.2010210
80890.40.400.1510710
82910.40.400.1510910
90990.40.350.1411910
1021110.40.300.1416610
1151240.40.280.1318610
1201290.40.250.1219310
127 1360.40.250.1020410
1401490.40.200.0922310
1521610.40.150.0824110
1591680.40.150.0.08252 10
1781870.40.12 0.0628010
2032120.40.100.0631810
2542630.40.060.0439410
3053140.40.040.0347110

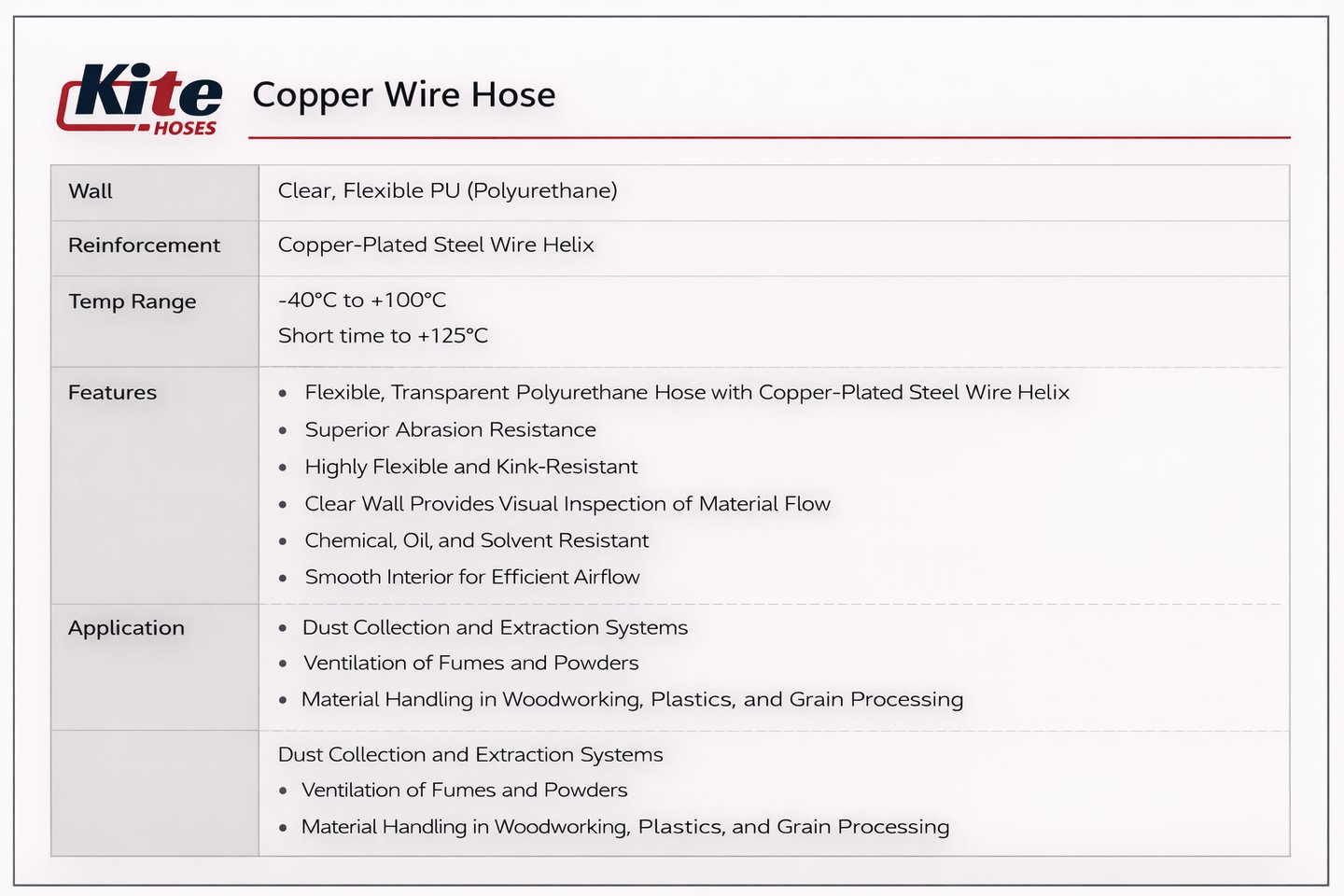

Applicable Standard:

Standard:

Construction:

Type:

Finishing:

Tube:
Reinforcement:
Cover:

Temperature Range:

40°C to +90°C

Advantages/Special features

  • Very nice looking with transparent wall and copper plated steel wire
  • Extremely abrasion-resistant
  • High tensile and burst strength and tearing resistant
  • Could be static electricity conductive by grounding the steel wire
  • Resistant to oil and fuel
  • Extremely flexible and compressible
  • Small bending radius
  • Free of plasticizer
  • Free of halogen
  • Various colors are available
  • Different wall thickness are available
  • Comply to RoHS
