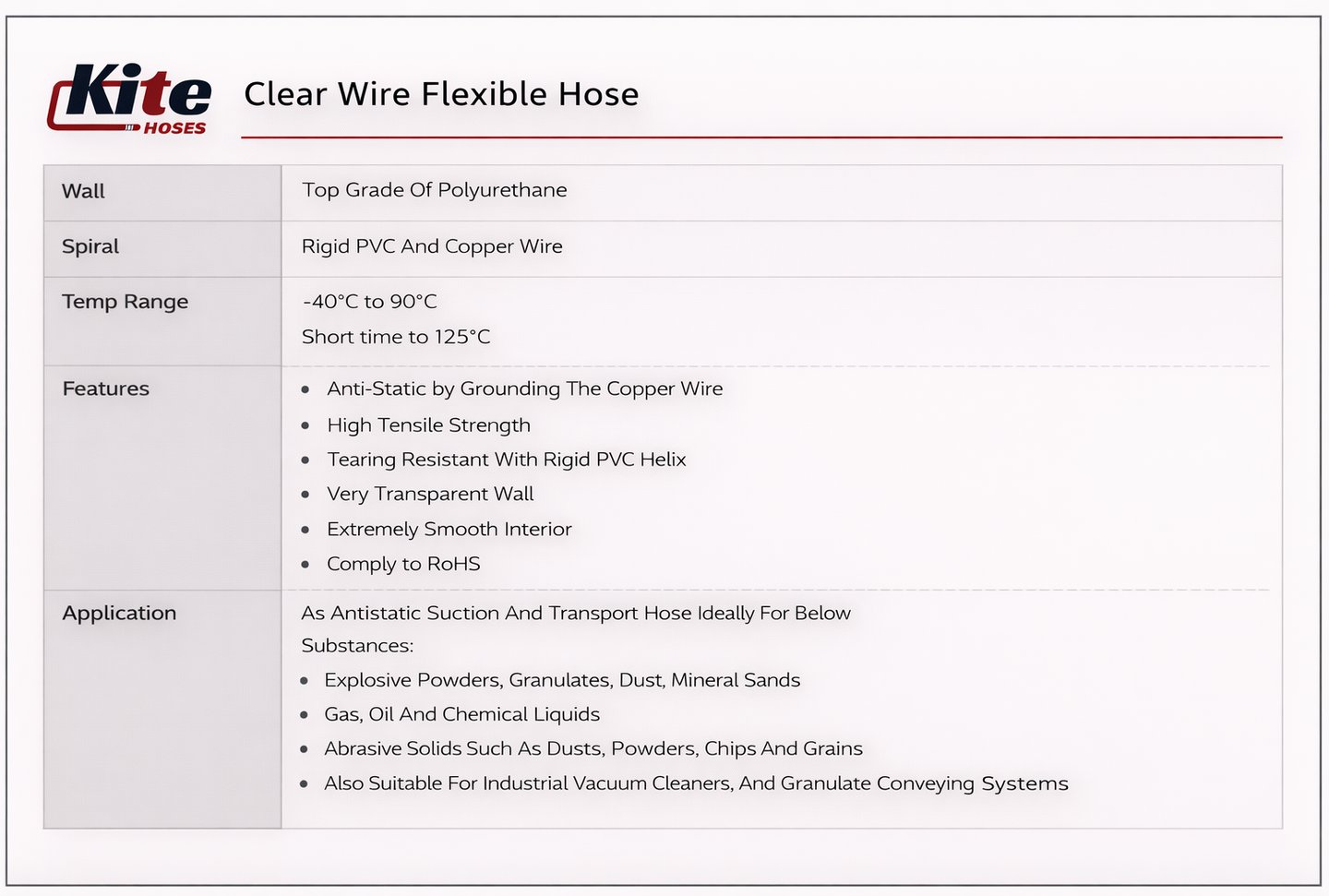

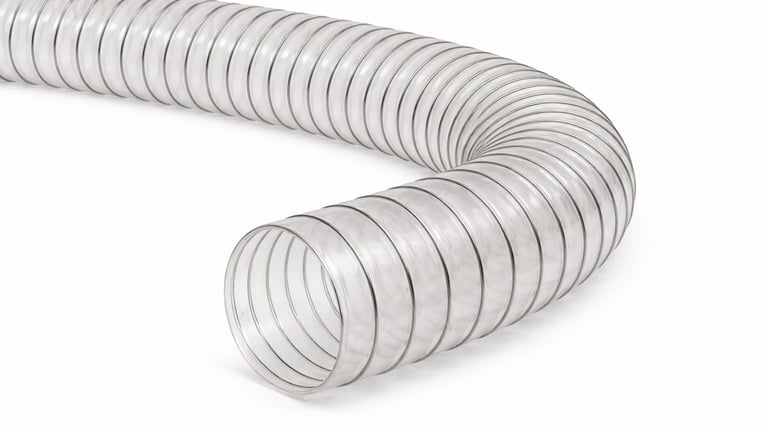

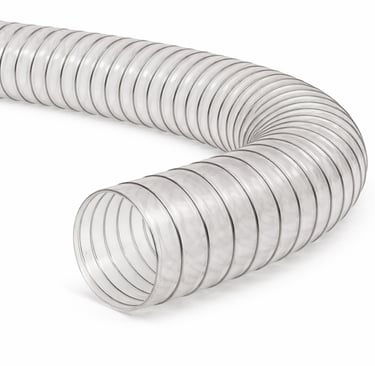

Clear wire flexible hose

Application

Especially ideal for ventilation, industrial vacuum cleaner, and granulate conveying systems. As suction and transport hose suitable for below substance:
  • Gaseous medias such as vapors and smoke
  • Liquid medias
  • Small granules such as dusts, powders and etc.
'
aimg1 aimg1aimg2aimg4aimg4aimg7aimg8
IDODWall
Thickness
Working
Pressure
Vacuum
Pressure
Bending
Radius
Max.
Length
mm mmbarbarmmmmm
25320.61.500.453810
32380.61.500.434610
38440.61.400.405310
40460.61.400.405510
51 560.61.300.306710
60650.61.200.307810
63700.61.200.308410
76740.60.900.258910
80880.60.900.2510510
90980.60.800.2011810
1021100.60.700.2016510
1271350.60.500.1520210
1401480.60.400.1322210
1521600.60.300.1024010
1591670.60.280.0925010
1781860.60.260.0827910
2032110.60.230.0831610
2542630.60.200.0739410
3053150.60.160.0647210
4064180.60.080.0262710
Applicable Standard:

Standard:

Construction:

Type:

Finishing:

Tube:
Reinforcement:
Cover:

Temperature Range:

-20°C to +70°C

Advantages/Special features

  • Highly flexible with low weight
  • Extremely compressible
  • Could be static electricity conductive by grounding the steel wire
  • Smooth interior
  • Highly transparent wall
  • Small bending radius
  • Comply to RoHS
