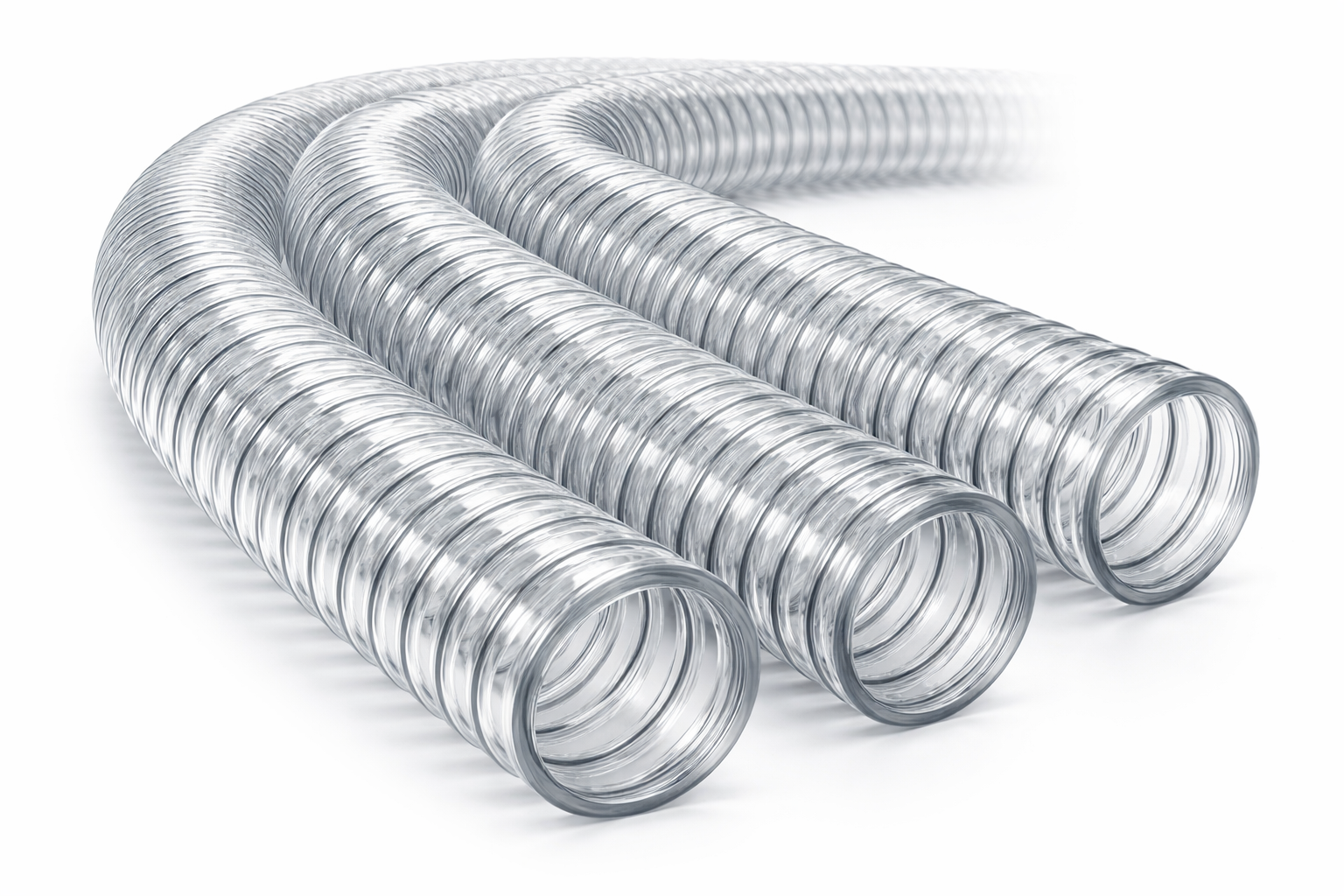

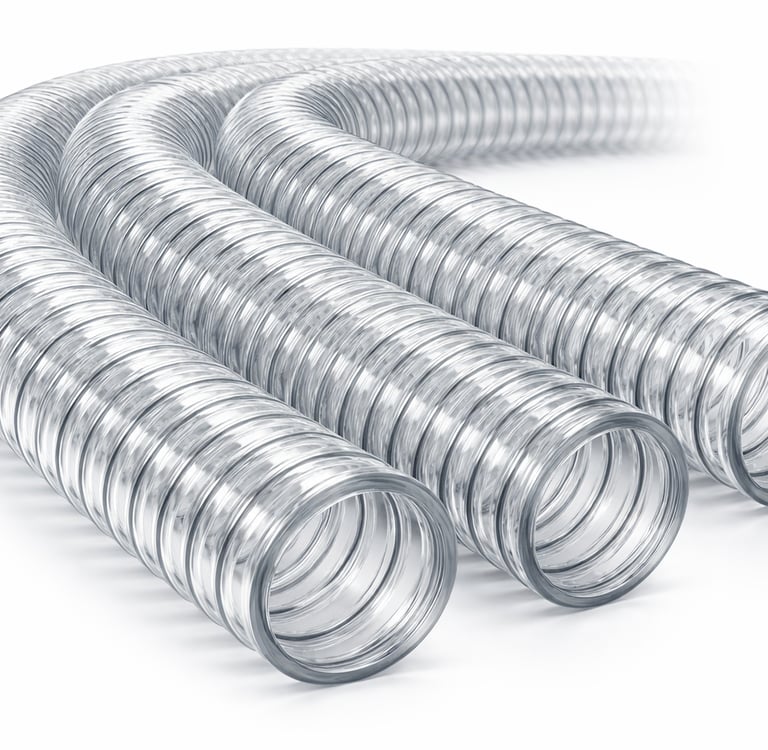

Clear hose with steel wire

Application

Very ideally for conveying water, oil and powder, abrasive mineral sands, gravel, cement, chips, shavings, construction, agricultural and industrial service applications.
'
aimg1aimg2aimg4aimg5aimg6

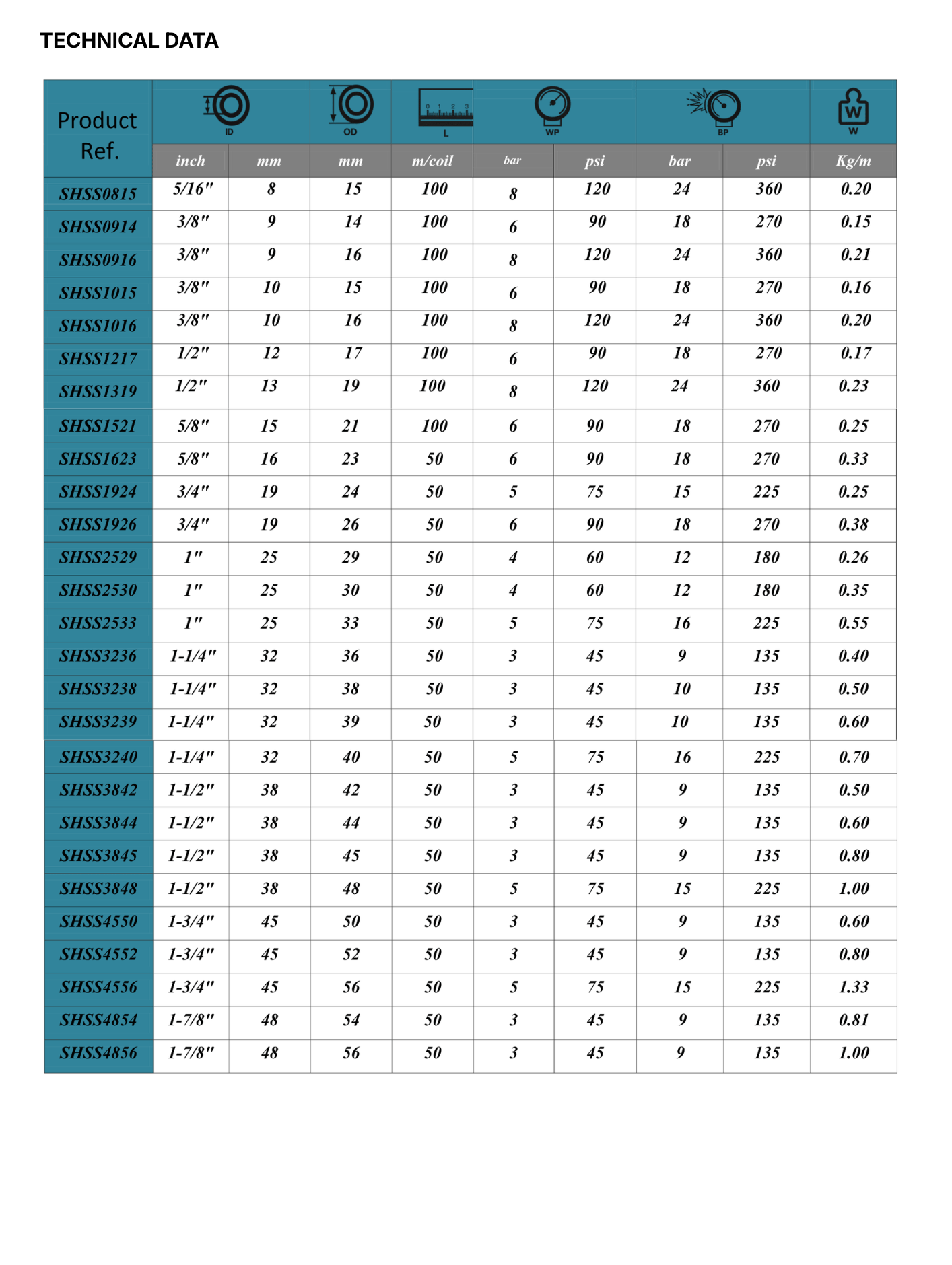

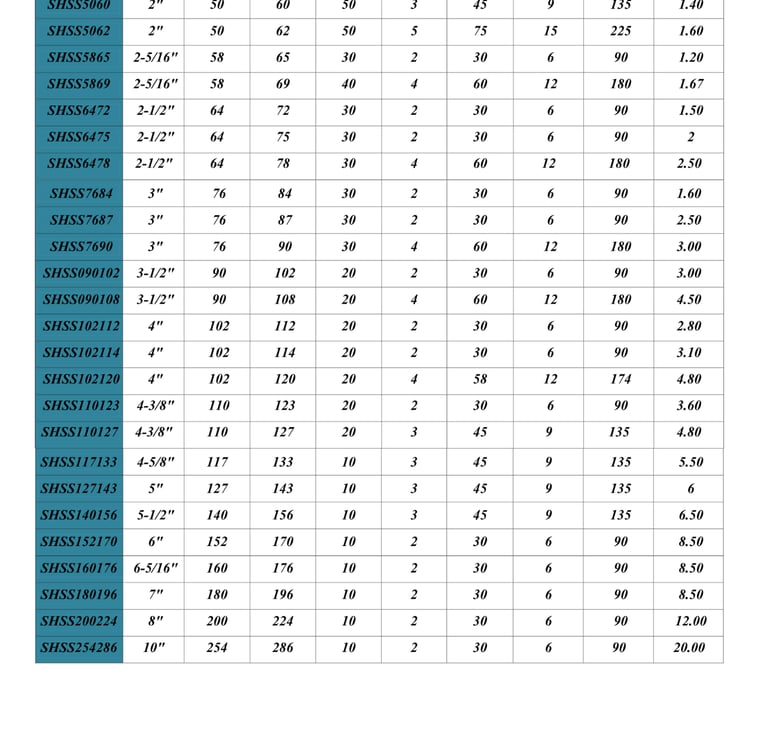

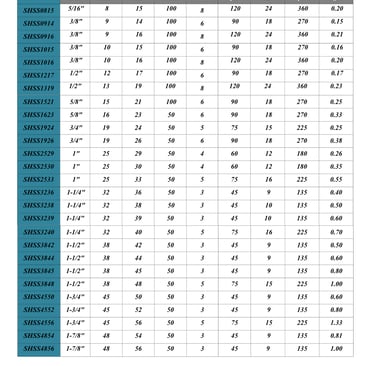

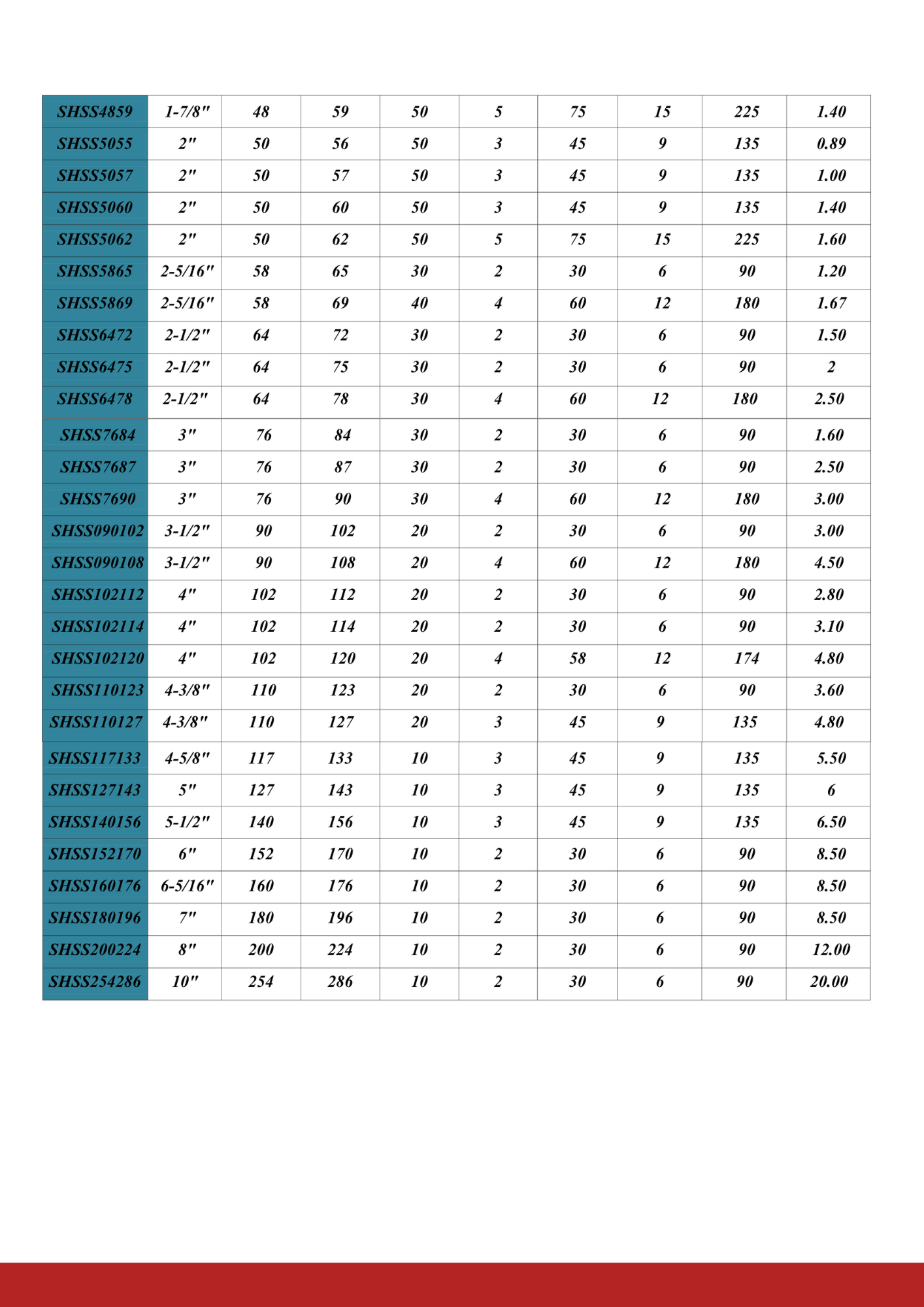

SizeIDOD WeightLength
inchmmmmKg/m m
5/16”8130.13100
5/16”8150.20100
199150.19100
3/8”9160.21100
3/8”12180.22100
1/2"13180.19100
1/2"13190.23100
1/2"1522 0.3050
5/8” 1622 0.2750
5/8” 16230.3350
5/8” 19240.2650
3/4"19250.3150
3/4"19260.3550
3/4"19280.5050
3/4"25290.2650
1” 25300.3350
1” 25310.4050
1” 25320.4850
1” 25330.5450
1” 32380.5040
1-1/4”32390.6040
1-1/4”32400.7040
1-1/4”32410.7640
1-1/4”38440.6040
1–1/2"38450.7040
1–1/2"38460.8040
1–1/2"38481.0540
1–1/2"40 470.7340
1-5/8”40 490.9640
1-5/8”45530.9040
1-3/4”45551.3540
1-3/4”45551.3340
1-3/4”45561.4640
1-3/4”50571.0040
2”50581.3040
2”50591.3040
2”50601.4440
2”50611.6040
2”51621.2040
2”51601.3440
2”51611.4840
2”51621.6340
2”58631.5040
2-5/16”58681.6730
2-5/16”58691.8330
2-5/16”60701.5530
2-3/8”60701.7230
2-3/8”60711.8930
2-3/8”60722.0030
2-3/8”60732.2430
2-3/8”64741.6520
2-1/2” 64741.8220
2-1/2” 64752.3720
2-1/2” 75781.8020
3”75841.9020
3”75852.1020
3”75862.3020
3”75872.9020
3”89902.5020
3-1/2”89992.7020
3-1/2”901012.7520
3-1/2”901023.2020
3-1/2”1021043.0020
4”1021123.5020
4”1021144.8020
4”1021185.0920
4”1021205.4020
4”110 1223.6020
4-1/4”110 1233.9020
4-1/4”110 1244.8020
4-1/4”1271276.0010
5”1271436.2010
5”1521446.5010
6” 1521689.0010
8”20022011.0010
Applicable Standard:

Standard: : PVC steel suction hoses, steel Spiral Reinforced PVC Suction Hoses, water suction hoses with steel wire, PVC Suction and discharge hoses, steel reinforced PVC hoses.

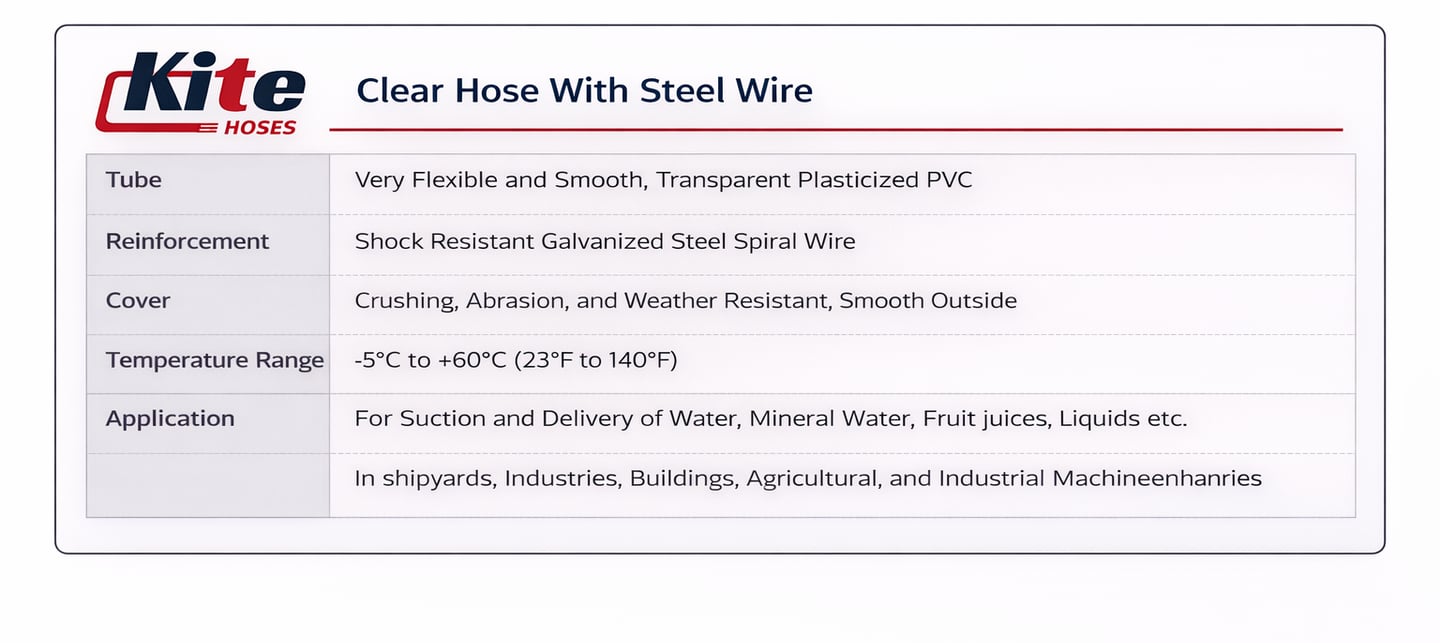

Construction:

Type:

Finishing: Wall-high quality special material, Reinforcement – Steel Spiral.

Tube:
Reinforcement:
Cover:

Temperature Range:

-10°C to +65°C

Advantages/Special features
